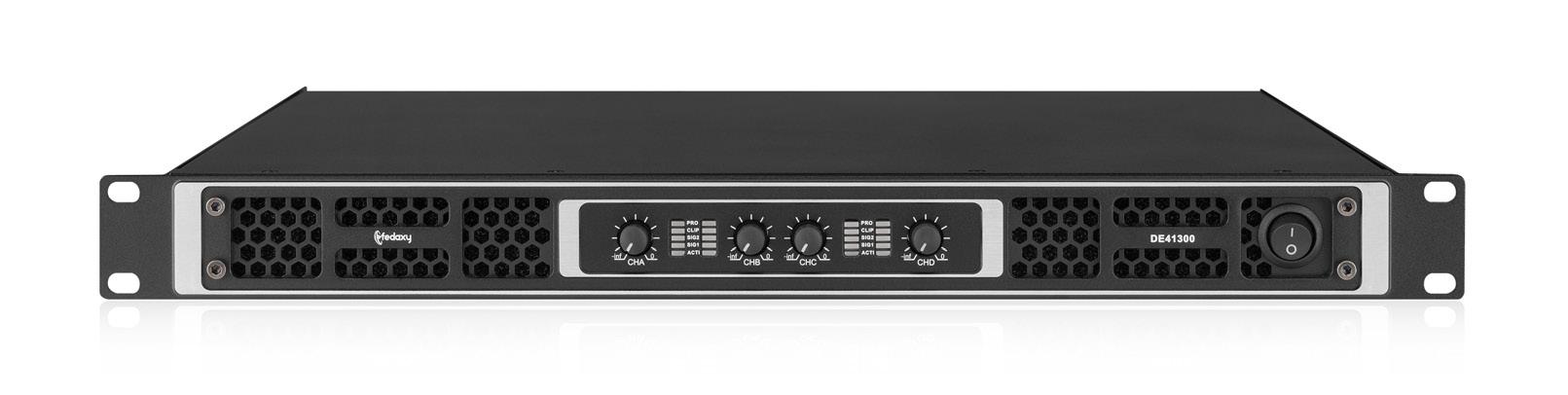

DE41300 1U 4 Channel 4x1300W Class TD Power Amplifier
4x1300W@8Ω / 4x1950W@4Ω / 4x3250W@2Ω
DE41300 provides four channels of powerful Class TD amplification in a space-saving 1U design. Its efficient cooling system, stable output, and flexible multi-channel configuration make it a perfect solution for KTV rooms, entertainment venues, and professional fixed installations requiring reliable performance.
Quality is our culture
Built for stable output, verified performance,and long-term reliability
5 Rounds of QC Testing
Every amplifier passes five QC inspections before shipment to ensure consistent performance.
8-Hour Aging Test
Each unit completes an 8-hour aging test to verify stable operation under real working conditions.
100% Copper Transformer
High-quality copper transformers help ensure stable power output and long-term reliability.
100% Real Wattage
True rated power output gives system integrators and venues dependable amplifier performance.
3-Year Warranty
Long-term warranty support gives buyers confidence in product quality and after-sales service.
Description
High-Density 4-Channel Power in 1U
4x1300W@8Ω / 4x1950W@4Ω / 4x3250W@2Ω The DE41300 combines four channels of Class TD amplification with a highly compact 1U design, delivering impressive power density for professional sound reinforcement systems.
Efficient Power with Consistent Output
Its advanced Class TD architecture and optimized power supply provide efficient energy conversion and stable output across different loads, while effective thermal management supports reliable operation during extended use.
Professional Performance & Built-In Protection
Designed for demanding applications, the DE41300 offers powerful 2Ω driving capability and dependable system protection, including thermal, short-circuit, overcurrent, and DC protection, for safe and consistent performance.
Parameter
| Model | DE4400 | DE4600 | DE4800 | DE41000 | DE41300 |
|---|---|---|---|---|---|
| 8Ω stereo power | 4x400W | 4x600W | 4x800W | 4x1000W | 4x1300W |
| 4Ω stereo power | 4x600W | 4x900W | 4x1200W | 4x1500W | 4x1950W |
| 2Ω stereo power | 4x1000W | 4x1500W | 4x2000W | 4x2500W | 4x3250W |
| Height | 4ch/1U | ||||
| Frequency response | 20Hz-20kHz/+-0.5dB | ||||
| THD | <0.05% | ||||
| S/N ratio | >110dB | ||||
| Input sensitivity | 0.775V/1V/1.4V | ||||
| Damping factor | >500 | ||||
| Crosstalk | >35dB | ||||
| Slew rate | 20V/us | ||||
| Input impedance | balance 20KΩ , unbalance 10KΩ | ||||
| Cooling system | 4 pcs intelligent fan,from front to back exhaust cooling system | ||||
| Protections | Power-on buffer, overheating protection, short circuit protection,output DC protection | ||||
| Power supply | 90-296V/50-60Hz | ||||
| Packing size | 605x580x120mm | ||||
| Gross weight（KG） | 11 | 11.5 | 12 | 12.5 | 13 |
