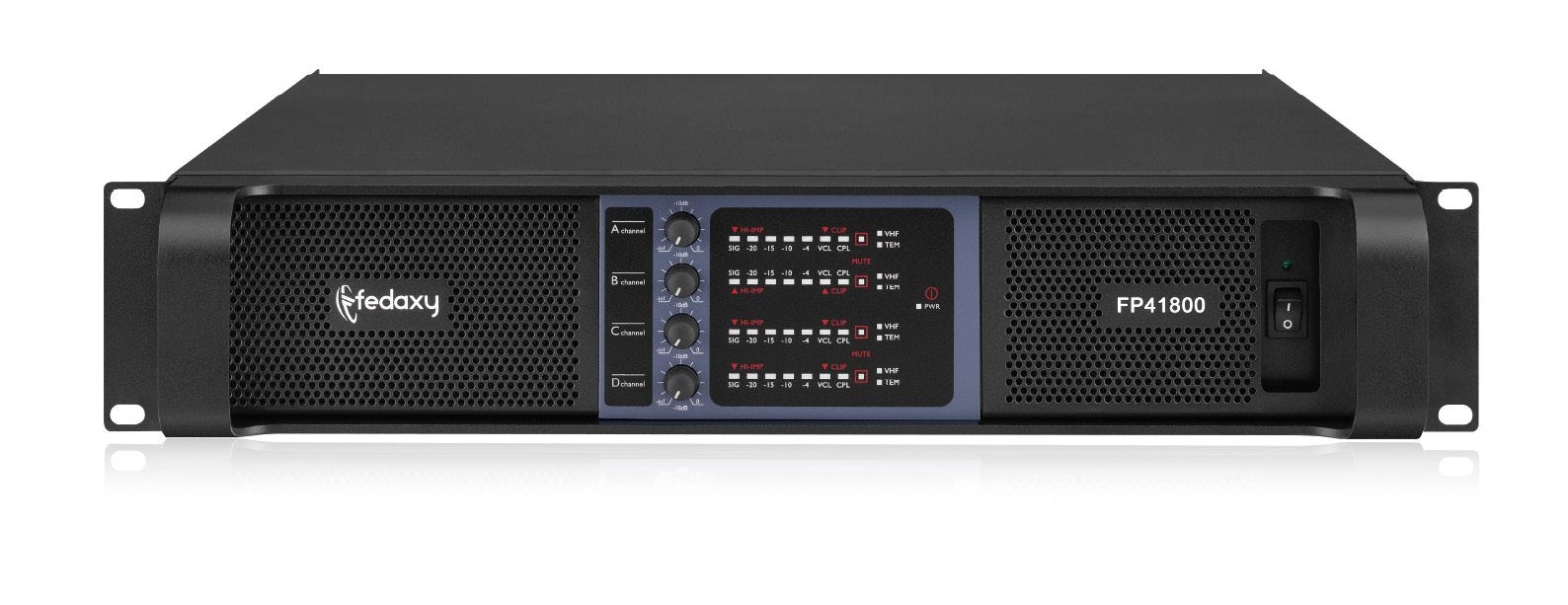

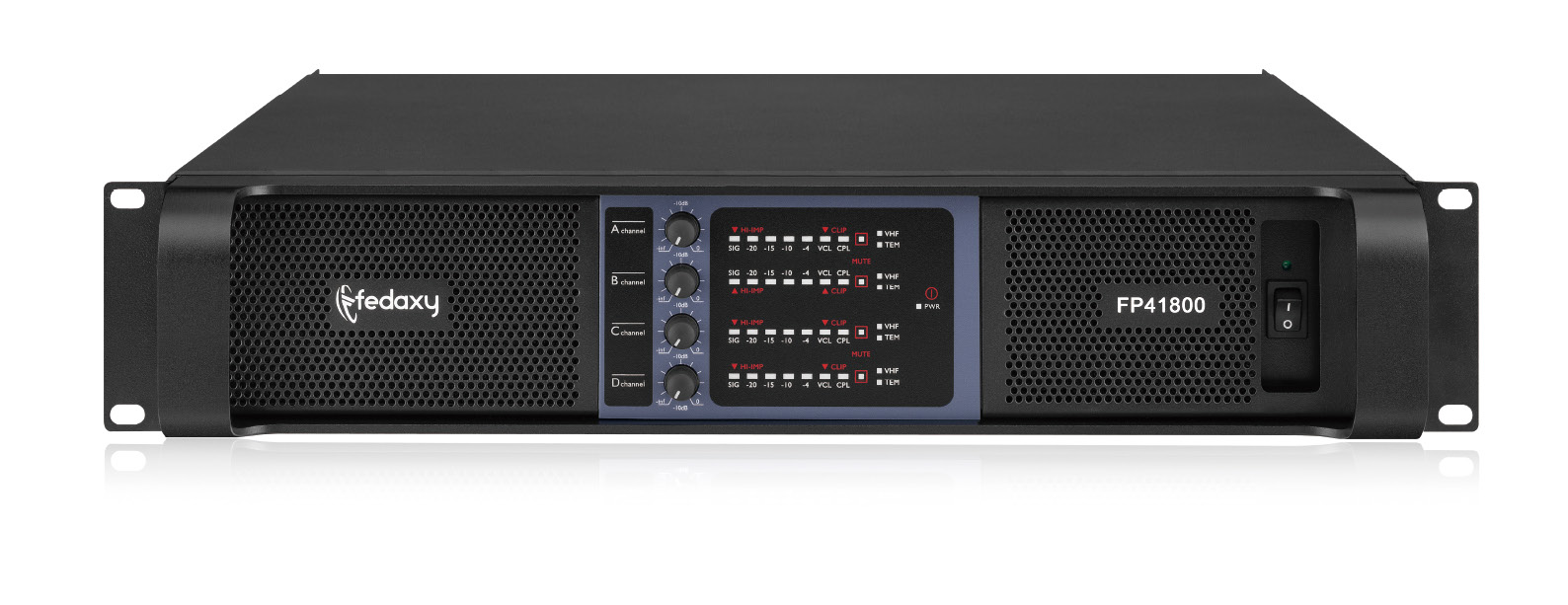

FP41800 2U 4 Channel 4x1800W Class TD Power Amplifier

Name: FP41800 2U 4 Channel 4x1800W Class TD Power Amplifier
Brand: Fedaxy
SKU: UHJvZHVjdDo0Mg==
Price: 0.01 USD
Availability: OutOfStock

4x1800W@8Ω / 4x3150W@4Ω / 4x4500W@2Ω

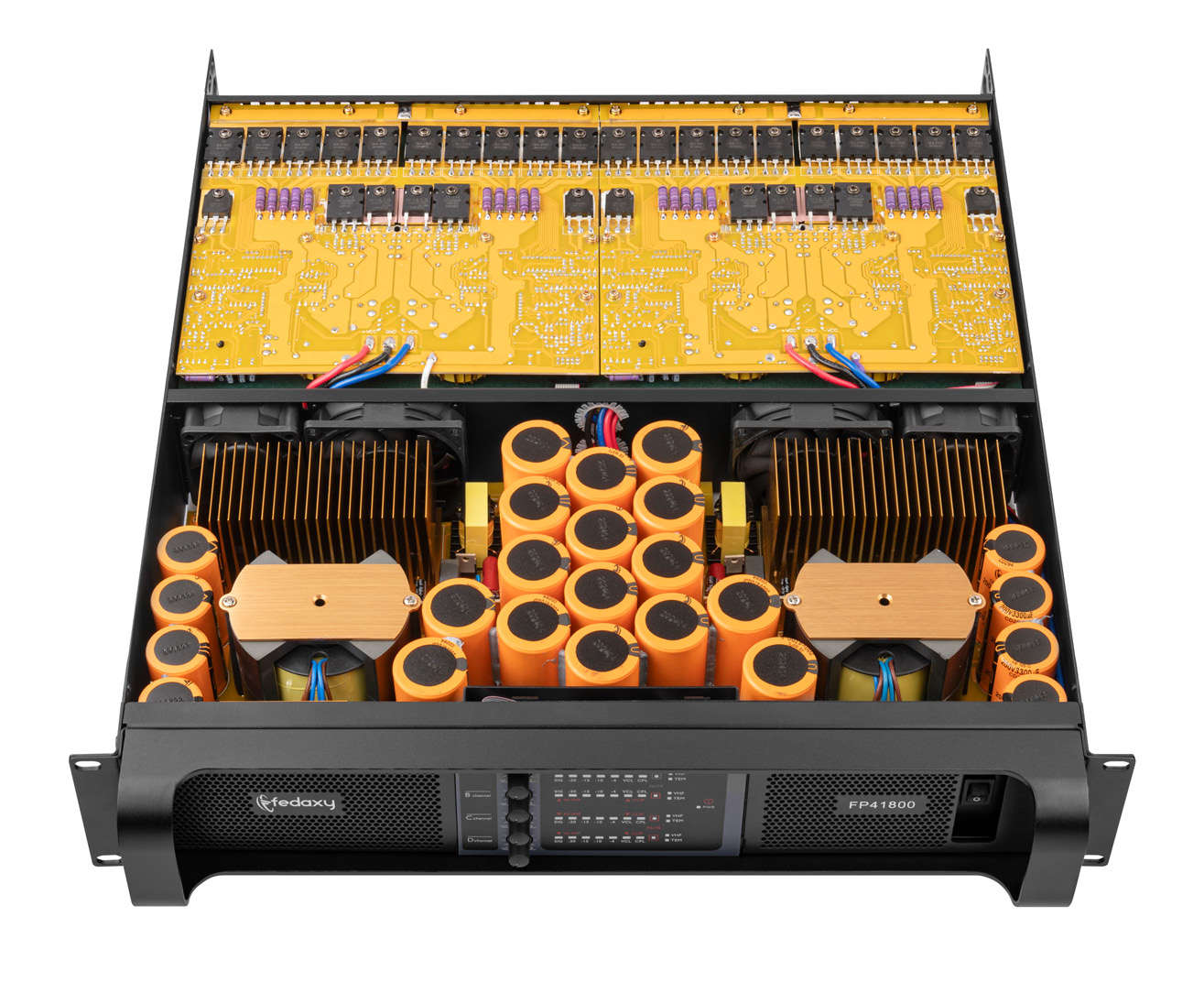

FP41800 combines Class TD amplification technology with a dual switching power supply system to deliver stable power output and efficient operation. Featuring durable plastic power transistors and a robust 2U chassis design, it provides dependable performance for touring, rental, and sound reinforcement applications.

Quality is our culture

Built for stable output, verified performance,and long-term reliability

5 Rounds of QC Testing

Every amplifier passes five QC inspections before shipment to ensure consistent performance.

8-Hour Aging Test

Each unit completes an 8-hour aging test to verify stable operation under real working conditions.

100% Copper Transformer

High-quality copper transformers help ensure stable power output and long-term reliability.

100% Real Wattage

True rated power output gives system integrators and venues dependable amplifier performance.

3-Year Warranty

Long-term warranty support gives buyers confidence in product quality and after-sales service.

Description

Four-Channel Power for Professional Systems

4x1800W@8Ω / 4x2650W@4Ω / 4x4500W@2Ω The FP41800 is built to handle demanding multi-channel sound systems, combining four high-output Class TD channels with a robust 2U platform for powerful and consistent amplification.

Designed for Efficiency and Long-Term Stability

The Class TD topology provides an effective balance between high output and energy efficiency. A high-capacity power supply, intelligent cooling system, and optimized internal design help the amplifier maintain stable performance during continuous operation.

Reliable Control for Demanding Applications

With a wide operating range and strong low-impedance driving capability, the FP41800 adapts to different professional speaker systems with ease. Built-in protection against overheating, short circuits, overcurrent, and DC faults adds an extra layer of reliability for touring and fixed-installation applications.

Parameter

Model	FP41000	FP41300	FP41500	FP41800
8Ω stereo power	4x1000W	4x1300W	4x1500W	4x1800W
4Ω stereo power	4x1700W	4x2250W	4x2650W	4x3150W
2Ω stereo power	4x2500W	4x3250W	4x3750W	4x4500W
8Ω bridge power	2x3000W	2x3900W	2x4500W	2x5400W
Height	4ch/2U
Frequency response	20Hz-20kHz/+-0.5dB
THD	<0.05%
S/N ratio	>110dB
Input sensitivity	44dB 41dB 38dB 32dB 26dB 23dB
Damping factor	>500
Crosstalk	>35dB
Slew rate	20V/us
Input impendance	balance 20KΩ , unbalance 10KΩ
Cooling system	4 pcs intelligent fan,from front to back exhaust cooling system
Protections	Power-on buffer, overheating protection, short circuit protection,output DC protection
Power supply	185-260V/50-60Hz
Packing size	650x625x180mm
Gross weight（KG）	22
